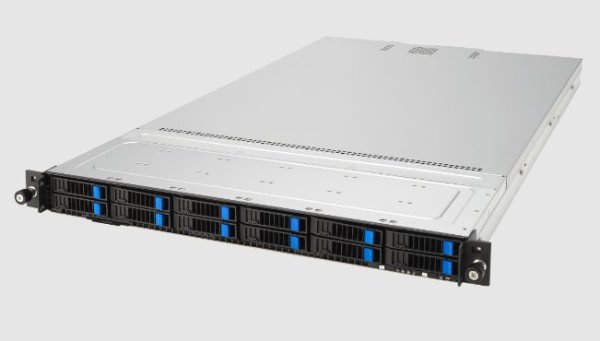

ASUS 1U server 2x SP5, 24x DDR5 4800 12x 2.5 NVMe/SATA, 2x 2600Wt, 4x 1Gb LAN, IPMI

ASUS 1U server 2x SP5, 24x DDR5 4800 12x 2.5 NVMe/SATA, 2x 2600Wt, 4x 1Gb LAN, IPMI

Name: ASUS 1U server 2x SP5, 24x DDR5 4800 12x 2.5 NVMe/SATA, 2x 2600Wt, 4x 1Gb LAN, IPMI
Brand: Asus
Price: 101862 CZK
Availability: InStock

Výrobce

Asus

Skladem

Doručení do týdne

100% Garance kvality
Výměna zboží ZDARMA
Rychlé dodání a špičková kvalita tisku!

Skladem

Doručení do týdne

101 862 Kč

84 183,00 Kč bez DPH

Popis produktu

CPU
Platform

CPU
Scoket

CPU #

Max
CPU TDP

Chipset

Memory
Type

Memory
#

Storage
#

Storage
Bay

Storage
Type

NVMe grade
(option)

Storage
Hotswap

SAS
Controller

M.2

Other
Storage

ODD

O/B NIC

GPU
Sport

PCIe
#

PCIe slots

OCP

PSU
#

Railkit

PSU
Type

Heatsink
Type

Depth
(mm)

EPYC
Genoa

LGA6096

400W

SOC

DDR5 4800

2.5"

SATA/SAS/12xNVMe

Option

Intel-i350 Based
1Gb x 4

1 x PCIe Gen4 x16, FHFL (CPU1)
1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2)

3.0X1

1+1

1000mm
Friction

2600W 80+ Titanium

1U EVAC HS

842.5 x 449 x 43.85

Processor / System Bus

2 x Socket SP5 (LGA 6096)
AMD EPYC™ 9004 Series
Max TDP : 400W
Generation

E12
Memory

Total Slots :
24 (12-channel per CPU, 1 DIMM per CPU)
Capacity :
Maximum up to 3072GB per socket
Memory Type :
DDR5 4800/4400 RDIMM/ 3DS RDIMM
Memory Size :
128GB, 64GB, 32GB RDIMM
128GB, 64GB, 32GB 3DS RDIMM
* Refer to www.asus.com/support for more information
Expansion Slots

Up to 3 x PCIe Gen5 slots + 1 x internal RAID slot
1 x PCIe Gen5 x16 (FHFL)
1 x PCIe Gen5 x16 or OCP3.0 (FHFL)
1 x PCIe Gen5 x16 (LP)
1 x PCIe Gen4 x8 (LP, internal)
*Installing GPU cards will occupied expansion slots.
*GPU SKU do not support OCP3.0.
Storage

SATA Controller :
8 x SATA 6Gb/s ports
2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link)
SAS Controller :
Braodcom HBA CARD 9500-16i (Optional)
Broadcom MegaRAID 9540-8i (Optional)
Broadcom MegaRAID 9560-16i (Optional)
Drive Bays

12 x 2.5" Hot-Swap drive bays
Support up to 12 x NVMe/SATA/SAS*

*RAID card is required to support SAS hard drives
System Fan

8
Networking

Option 1: 1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN
Option 2: 1 x Dual Port Intel X710-AT2 10G LAN Controller + 1 x Mgmt LAN
Option 3: None x + 1 x Mgmt LAN
Graphic

Aspeed AST2600 64MB
Multi-GPU Support

Please find the latest GPU support from https://servers.asus.com/support/gpu
Rear I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Mgmt LAN port
2 x 10G or 4 x 1G RJ-45 GbE LAN port (Optional)
1 x OCP3.0 port (Optional)
*GPU SKU do not support OCP3.0.
Switch/LED

Front Switch/LED:
1 x Power Switch (w/ LED)
1 x Reset Switch
1 x Location Switch (w/ LED)
1 x HDD Access LED
1 x Message LED
LAN 1-4 LED (on NIC module)
Rear Switch/LED:
1 x Port 80 LED (Q-Code)
1 x Power Switch w/ LED
1 x Location Switch w/LED
1 x Message LED
OS Support

Please find the latest OS support from https://servers.asus.com/support/os
Management Solution

On-Board ASMB11-iKVM for KVM-over-IP
ASUS Control Center Enterprise (Optional)
Regulatory Compliance

BSMI, CE, CB, C-Tick, FCC(Class A)
Dimensions

842.5mm x 449mm x 43.85mm (33.17" x 17.68" x 1.73")
Form Factor

1U
Weight

Net Weight : 14.94KG
Gross Weight : 19.94KG
Power Supply

1+1 Redundant 2000W/1600W 80 PLUS Platinum Power Supply
1+1 Redundant 2600W/1600W 80 PLUS Titanium Power Supply
Rating:
100-127/220-240Vac,12A/9.5A(x2),50/60Hz
100-127/240Vac,13.8A/16A(x2), 50/60Hz
220-240Vac, 10A(x2), 50/60Hz
Environment

Operation temperature: 10? ~ 35?
Non operation temperature: -40? ~ 60?
Non operation humidity: 20% ~ 90% (Non condensing)
Note

*SAS support only from SAS HBA/RAID Card
CPU Heatsink/ Cooler

2
Fan

1 (For supporting GPU SKU, it will have external fan)

Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system.
* Optional means “built for order”.
