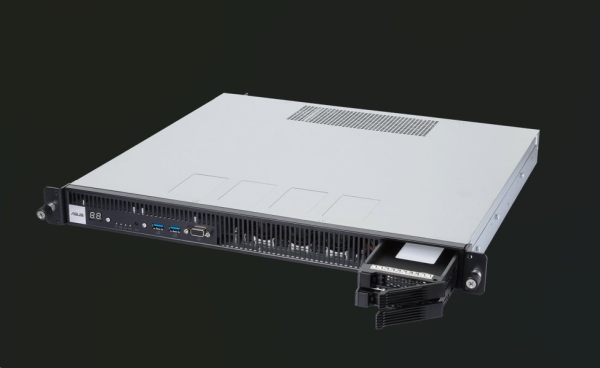

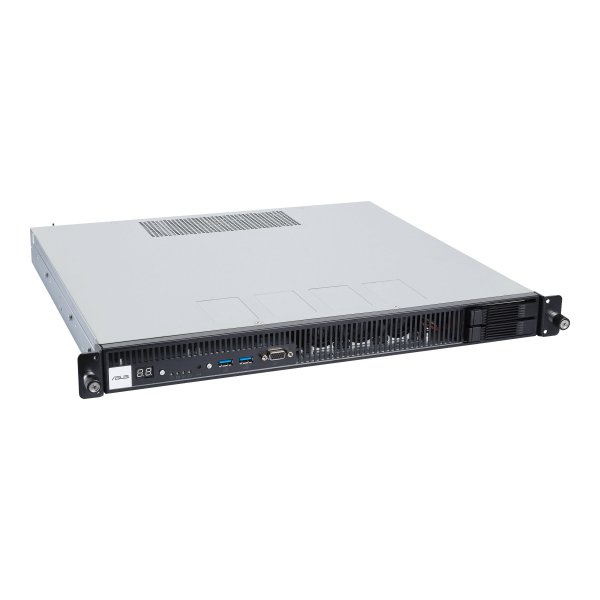

ASUS PRO ER100AB6 WOCPU WOM WOGPU EU 50F WOS WOA WON WOM WOR WON WOW 1 Z

AMD EPYC^™ 4005 Serires:
Windows Server 2025/2022 or Ubuntu 24.04
AMD EPYC^™ 4004 Serires:
Windows Server 2022 or Ubuntu 22.04
AMD Ryzen^™ 9000/7000 Series:
Windows 11 Pro or Ubuntu 24.04

AMD Socket AM5
AMD EPYC^™ 4005 Series Processors*
AMD EPYC^™ 4004 Series Processors*
AMD Ryzen^™ 9000 Series Processors*
AMD Ryzen^™ 7000 Series Processors*

*Refer to www.asus.com for CPU support list.
**Single processor, TDP up to 120W

AMD B650 Chipset

Total Slots:
4 (2-channel)
Memory Type:
DDR5 5600 MHz, ECC/non-ECC UDIMM
Memory Size:
48GB, 32GB, 16GB, 8GB

*Refer to product QVL for more information
*Actual memory frequency differs from AMD CPU types and memory module. Please check AMD official site for more detail about the memory types supported by each CPU.

Total: 1
Location-1: PCIe x16 slots (Gen 5.0 x16/x8 link, FH HL)

*Specifications vary by CPU types.

Storage Controller:
AMD Processors*
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

*AMD RAIDXpert2 Technology supports RAID 0/1/5/10.

2 x 2.5'' SATA drive hot-swap bays
2 x internal 2.5'' SATA or U.2 NVMe drive tray

1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
2 x Intel^® 2.5Gb Ethernet

Supports up to one NVIDIA^® low-profile graphics card, including but not limited to
NVIDIA^® RTX^™ A1000
NVIDIA^® RTX^™ A400
2 x VGA from Aspeed AST2600*
1 x USB Type-C^® display output (integrated graphics from CPU)**

*Maximum Display resolution: 1920x1200 32bpp@60Hz
**Supports max. 4K@60Hz as specified in DisplayPort 1.4a
***To ensure optimal stability, an ambient temperature of under 25°C is recommended during heavy workloads.

2 x USB 5Gbs ports
1 x VGA port

1 x USB 10Gbps port (1 x USB Type-C^®with ALT mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
2 x Intel 2.5Gb Ethernet port
1 x Realtek 1Gb Ethernet port
1 x VGA port
1 x Serial COM port

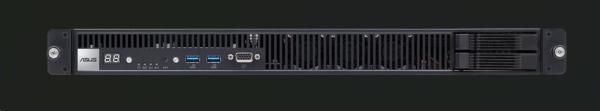

Front:
1 x Power Button
1 x Locate Button
1 x Reset Button
1 x Storage activity LED
1 x System Message LED
2 x LAN activity LEDs
1 x Q-code

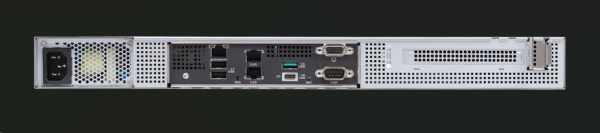

Rear:
1 x Locate Button
1 x Message LED
1 x BMC LED

ASUS Control Center Express

BSMI, CE, FCC, UL, Energy Star

438.5mm x 43.2mm x 409mm
17.3" x 1.7" x 16.1"

Net Weight : 9.625kg
Gross Weight : 12.425kg

500W Gold ATX Power Supply
(100-240Vac, 8-4A, 60-50Hz)

1.Operation temperature: 10? ~ 35?, max supported CPU TDP is 65W
2.Operation temperature: 10? ~ 30?, max supported CPU TDP is 105W
3.Operation temperature: 10? ~ 25?, max supported CPU TDP is 120W
Non operation humidity: 20% ~ 90% (Non condensing)

Long Simple Rail (Rack rails suitable for a rackmount system in a server room)
