| Product SKUs |
| |
| SYS-E300-9D-4CN8TP |

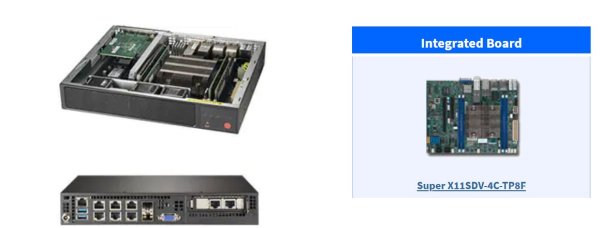

- SuperServer E300-9D-4CN8TP (Black)
|
| Processor/Cache |
| |
| CPU |
- Intel® Xeon® processor D-2123IT,
CPU TDP support 60W
|
| Cores / Cache |
|
| System Memory |
| |
| Memory Capacity |
- Up to 512GB DDR4 ECC LRDIMM
- Up to 256GB DDR4 ECC DIMM
- 4 DIMM slots
|
| Memory Type |
- 2666/2400/2133MHz ECC LRDIMM and ECC DIMM
- Operating speed up to 2400MHz
|
| DIMM Sizes |
- RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
- LRDIMM: 16GB, 32GB, 64GB, 128GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors
(using ECC memory)
|
| On-Board Devices |
| |
| Chipset |
|
| SATA |
- SATA3 (6Gbps) ports via SoC controller
|
| Network Controllers |
- Quad 1GbE with Intel I350-AM4
- Dual 10GBase-T with Intel X557
- Dual 10G SFP+ via SoC
|
| IPMI |
- Support for Intelligent Platform
- Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
| Graphics |
|
| Input / Output |
| |
| SATA |
- SoC controller for 4 SATA3 (6Gbps) ports
|
| LAN |
- 2x 10G SFP+ ports
- 2x 10GBase-T LAN ports
- 4x 1GbE LAN ports
- 1 Dedicated IPMI LAN port
|
| USB |
|
| Display |
|
| TPM |
|
|
