Ubiquiti Switch L3 UniFi USW-Pro-XG-8-PoE

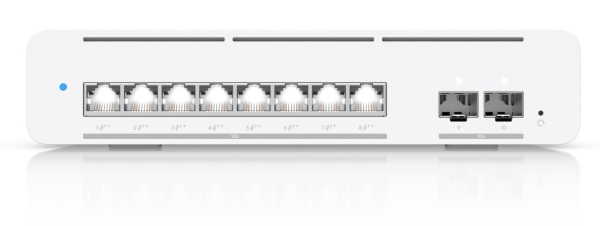

Overview Dimensions 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7") Port Layout 10 GbE RJ45 8 (All PoE++) (10G/5G/2.5G/1G/100M) 10G SFP+ 2 (10G/1G) Max. PoE Output Up to PoE++ Total PoE Availability 155W Layer 3 ? Form Factor Compact desktop, wall Etherlighting™ ? Performance Switching Capacity 200 Gbps Total Non-Blocking Throughput 100 Gbps Forwarding Rate 149 Mpps Supported VLANs 1,000 MAC Address Table Size 32,000 L3 Table Size ARP Entries 12,000 IPv4 Routes 12,000 Packet Buffer Size 2 MB Layer 3 Features DHCP Server (Local Networks) ? DHCP Relay ? Inter-VLAN Routing (Local Networks) ? Static Routing (Local Networks) ? Layer 2 Features LACP Port Aggregation ? STP & RSTP ? QoS (DSCP) ? Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ? Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ? IGMP Snooping ? 802.1X Control ? MAC-Based ACLs & Device Isolation ? DHCP Snooping & Guarding ? Egress Rate Limit ? Flow Control ? Storm Control ? Multicast & Broadcast Rate Limiting ? MAC Address Blocking ? IP-Based ACLs & Network Isolation ? MAC-Based Port Restriction ? Port Isolation ? Port Mirroring ? Jumbo Frames ? LLDP-MED ? Voice VLAN ? Loop Protection ? Hardware PoE Ports PoE++ 8 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 30W PoE++ 60W Max. Power Consumption 61W (Excluding PoE output) 220W (Including PoE output) Power Method AC/DC Adapter (included) Power Input Method DC input Power Supply AC/DC, external, 210W Supported Voltage Range 50—57V DC Management Ethernet AR Weight 1.6 kg (3.5 lb) Enclosure Material SGCC steel Mount Material Polycarbonate ESD/EMP Protection Air: ± 30kV, contact: ± 30kV Ambient Operating Temperature -5 to 45° C (23 to 113° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet ? SFP+ ? LEDs System ? NDAA Compliant ? Certifications CE, FCC, IC Software Application Requirements UniFi Network Version 9.0.114 and later
